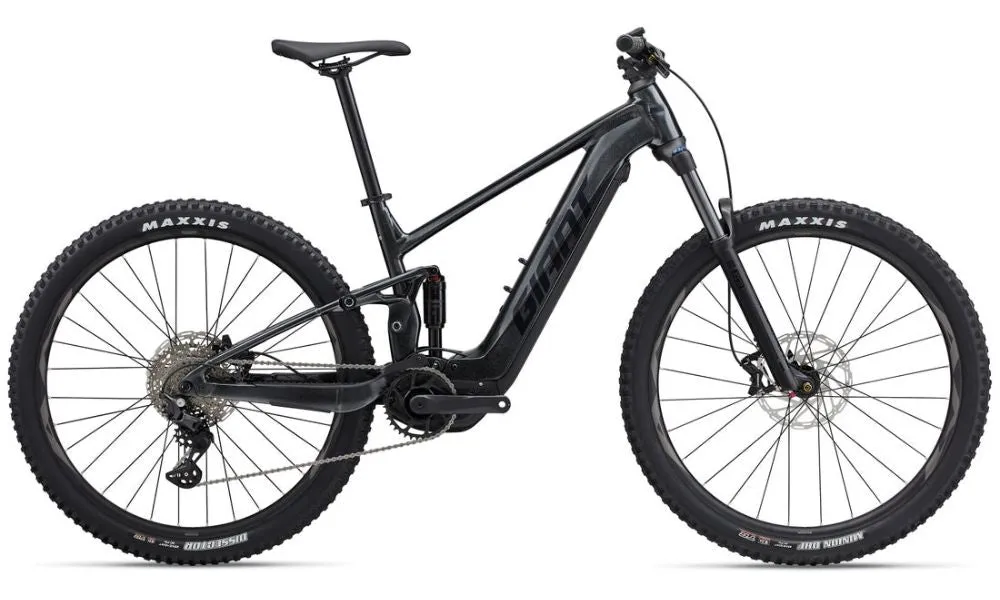

Giant 2023 Stance E 2
Ride trails with confidence, control and flat-out fun. This new Ebike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.
The SyncDrive Sport 2 motor delivers 75Nm of torque for smooth acceleration and climbing power, even at low speeds on technical trails. FlexPoint rear suspension (125mm travel, plus 140mm up front) gobbles up rocks and other trail obstacles. The RideControl Dash control unit has integrated handlebar support buttons for improved ergonomic control. And a new EnergyPak 625 battery system lets riders push their trail riding adventures further.
Powerful pedalling support
The new compact SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for high power, even at low speeds on technical trails.
Confident handling
ALUXX SL aluminium frame with 125mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
Long-lasting fun
The new EnergyPak 625Wh battery offers the longest possible range. The integrated battery pack makes charging quick and easy.
Specifications
Giant 2023 Stance E 2
Frame
Colour: Black Diamond
Frame: ALUXX SL-Grade aluminium, 125mm travel FlexPoint suspension system,12x148mm thru-axle, UDH hanger
Fork: SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
Shock: SR Suntour Raidon R, custom tuned
Drivetrain
Crankset: FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
Pedals:
Chain: Shimano, LinkGlide, CN-LG500
Bottom Bracket: NA
Rear Derailleur: Shimano Deore LinkGlide, 10-speed
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore LinkGlide
Freewheel/Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Drive Unit: SyncDrive Sport 2, 75Nm, powered by Yamaha
Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
Wheels
Tyres: [F] Maxxis Minion DHF 29X2.50"foldable, TLR, EXO, 60TPI [R] Maxxis Dissector 29X2.40"WT foldable, TLR, EXO, 60TPI
Wheels/Rims: Giant AM 29", Tubeless ready
Hubs: Giant eTracker Boost,
Braking System
Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
Brake Levers: Tektro HD-M745 Orion
Other
Handlebar: Giant Connect TR Riser 31.8mm
Stem: Giant Contact
Saddle: Giant Sport
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, alloy
Controller: RideControl Dash
Display: RideControl Dash, full colour lcd screen
Charger: EnergyPak 4A smart charger compact
