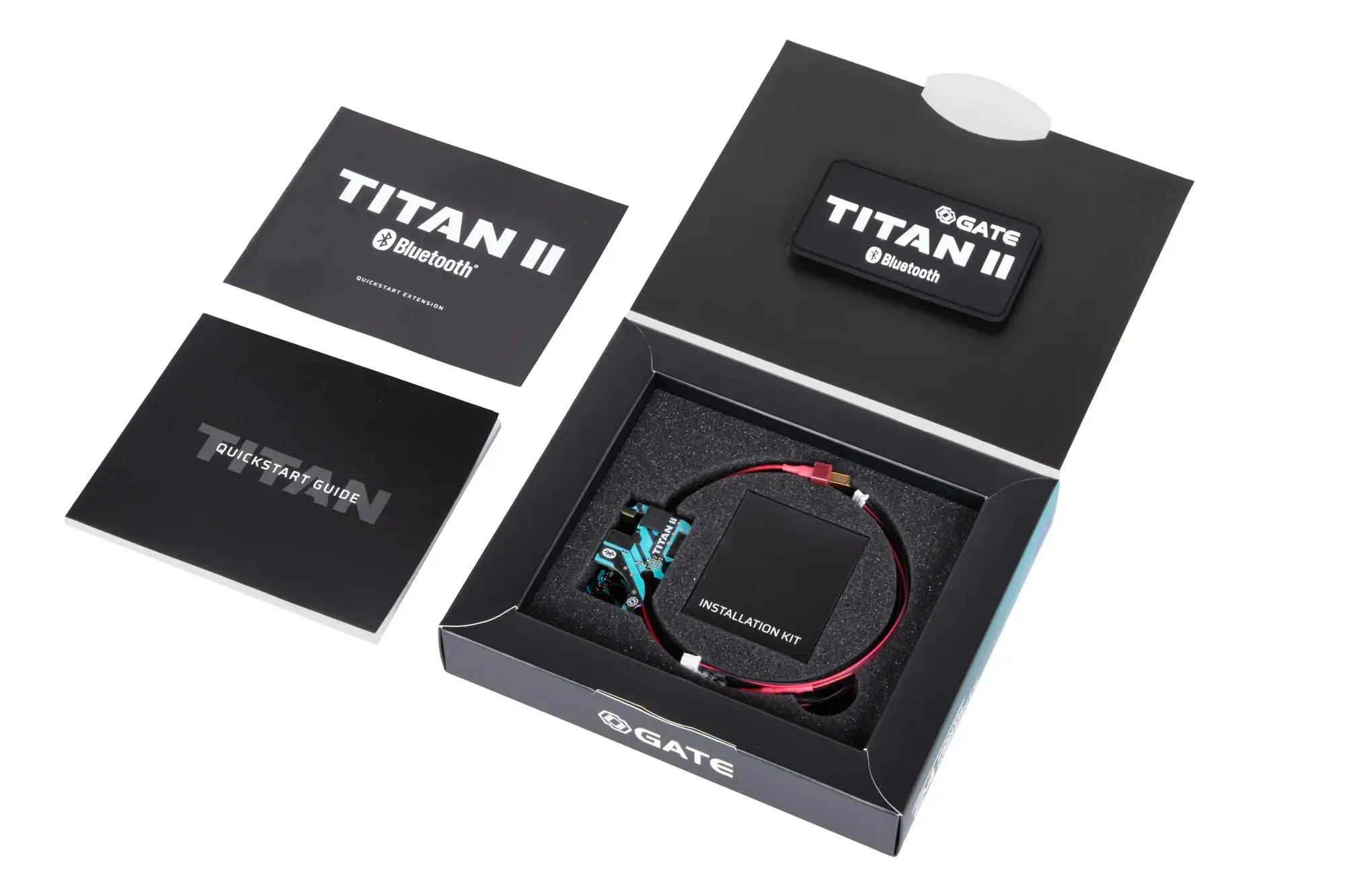

The GATE TITAN II Bluetooth® V2 Expert (HPA Front Wired) Controller Kit

TITAN II Bluetooth® V2 is GATE's flagship electronic chip replacement for the Electronic Contact Unit (ETU) by GATE. Built-in Bluetooth 5.2 technology gives direct access to the replica's settings, telemetry and the ability to use the with smartwatches, STATUS and other GATE devices.

Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.

Technical specifications_

Voltage rating: 3.75-17 VDC

Rated current_ 30 A

Maximum no-load current consumption_ 27 mA

Unloaded current consumption_ 100 µA

Communications: Bluetooth® 5.2 Low Energy

Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm

Weight of finished product_ 28.2g

Operating temperature range_ min. -15° C, max. 50° C

Relative operating humidity_ ? 80%

Firmware version EXPERT.

Version with revised wiring, prepared for single and double valve HPA motors.
